C&T Solution VIO-215 / MX200

VIO-200/MX200 series touch monitor provide a wide selection of display sizes are available from 12.1? to 23.8? with a format aspect of 4:3 and 16:9, and selected touch type. Featuring with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. It also supports Multi-Mode Display Module (MDM) technology which allows to configure, upgrade and maintain easily.

VIO-200/MX200 series supports both digital and analog signal input via three types of display interface: VGA, HDMI and DisplayPort. Touch screen can be connected with USB or COM port. It also has multi-language OSD function for adjusting the view options of display. In addition, supporting wide range power input from 9 to 48VDC and high reliability even operating in temperature extremes.Featuring with completely cable-less designed and high functional, VIO-200/MX200 series are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection and reverse protection DC power input makes VIO-200/MX200 series are safety system for all industrial applications.

Specification

Display


LCD Size
15? (4:3)

Max. Resolution
1024 x 768 (XGA)

Brightness (cd/m2)
350 / 1000 (Optional)

Contrast Ratio
700:1

LCD Color
16.2M

Pixel Pitch (mm)
0.297 (H) x 0.297 (V)

Viewing Angle (H-V)
170 / 160 (Deg.)

Backlight MTBF
50000 hrs (LED Backlight)



Touch


Resistive 5-wire
VIO-215R / MX200

Projected Capacitive
VIO-215C / MX200

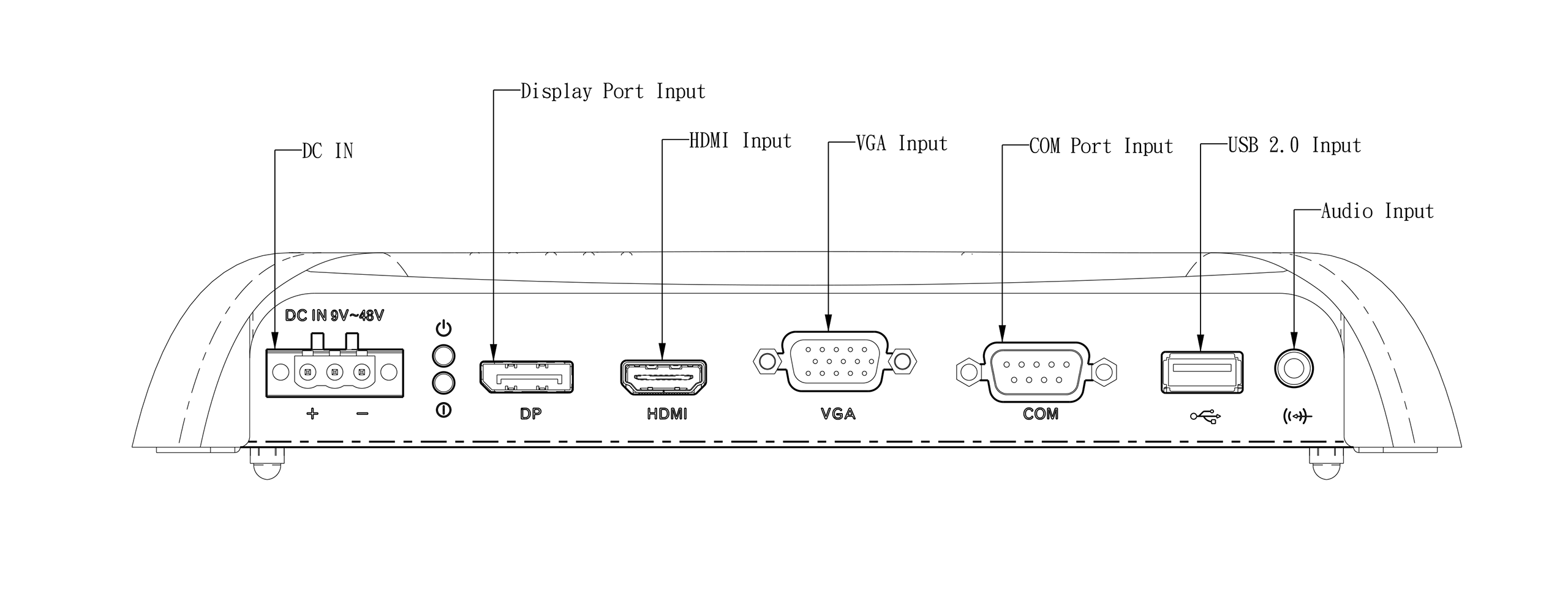

I/O


VGA Input
1x VGA Input

HDMI
1x HDMI Input

DisplayPort Input
1x DisplayPort Input

USB 2.0 Input
1x USB 2.0 Input

COM Port Input
1x COM Port Input

Audio Input
1x Audio Input



Other Features


Internal Speaker
AMP 10W + 10W

OSD
LCD On/Off, Auto, Menu, Up and Down
Multi-language



Power


Power Supply Voltage
9~48VDC

Power Connector
3-pin Terminal Block

Power Adaptor
Optional AC/DC 12V/5A, 60W

Power Protection
OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection



Environment


Operating Temp.
-10°C to 60°C

Storage Temp.
-20°C to 70°C

Relative Humidity
10% to 80% (non-condensing)

IP Level
IP 65 Compliant Front Panel

Vibration
1.5 Grms, 5 - 500 Hz, 0.5 hr/axis

Shock
20G, half sine, 11ms

Standards / Certification
CE, FCC Class



Physical


Front Panel Construction
Die-cast Flat Surface

Dimension
377 (W) x 301 (D) x 64.7 (H) mm

Weight
5.33 kg ~ 5.43 kg

Mounting
VESA Mounting Holes 75 x 75mm, 100 x 100mm

Ordering Information

Available Models



Model No.	Description
VIO-215R/MX200	15" 4:3 XGA Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-215C/MX200	15" 4:3 XGA Capacitive Touch Thin Frame Monitor with 2x 10W Speaker



Optional Accessories



Model No.	Description
1-E09A06008	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm

Packing List

• 1x VIO-215/MX200 Series Touch Monitor
• 10x Panel Mount Kit
• 1x USB Cable
• 1x VGA Cable
• 1x Screw Pack
